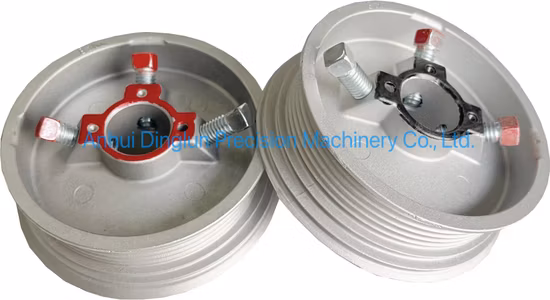

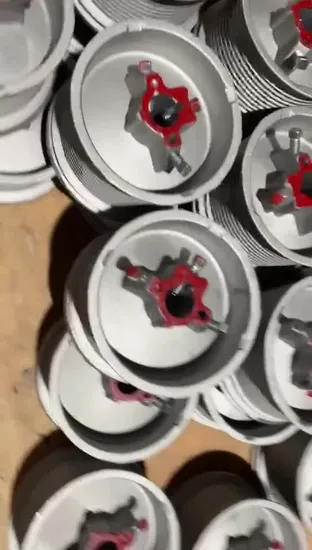

Aluminum Die Casting for Garage Door Cast

Aluminum Die Casting for Garage Door Cast

>> Panel Model >> Garage Door Motor >> Hardware Kit(self-produced) Hardware Choice: - Standard Single Track (SST): 1 pai
SHARE

Description

Basic Info.
Output Torque 1200N
Door Panel Pattern Square
Color Customized
Surface Finishing Finished
Certificate CE Approved,ISO9001
Service Life 10 Years
Noise Level 22dB
Water Tightness Class 3
Target Marget Europe, America, South Africa, Australia
Application Garage, Shopping Mall, Automobile Sales Servicshop
Glass Type Laminated, Full View, Frosted
Enterprise Nature Manufacturer and Trader Since 2009
Max Available Panel Length 6m (to Fit The Container)
Insert PC Sheet / Tempered Glass
Wind Resistance Class 3
Tracks Material Galvanized Steel Single Track/Double Track
Panel Width <610mm, Adjust
Pedestrian Door Available
Model Number Af4050/An5081us/An5005za
Transport Package Carton Box/ Wooden Cases
Specification Customized Size
Trademark Master Well
Origin China
HS Code 7610
Production Capacity 1000 Sets/Year
Product Description


>> Panel Model

ModelAF4050AN5081USAN5005ZA
Interface:Finger PrtectionNo Finger PrtectionNo Finger Prtection
Frame:Frame visible on the frontFrame visible on the frontFrame is not visible on the front
Thickness:40mm50mm60mm
Feature:Can be connected to the foam door panel SF40SProfile can be PU foamedProfile can be PU foamed
Pedestrian:AvailableAvailableNot available
Optional glass type:3mm PC board single layer, 3mm PC board double layer, 4mm PC board single layer, 5mm tempered glass3mm PC board single/ double layer, 4mm PC board, 5mm or 8mm tempered glass, 4+4mm double layer laminated glass (adhesive color optional), 3+3mm spun silk glass,4 + 6 + 4mm hollow glass5mm mirror glass, 5mm silk printed glass, 3+0.3mm aluminum composite panel,4+0.3mm aluminum composite panel


>> Garage Door Motor

General800N 1000N 1200N 1500N 1800N
Input Voltage:AC 220V - 240V / 110V - 127V, 50/60Hz
Motor Power:DC 24VDC 24VDC 24VDC 24VDC 24V
Light Power:10W/24V10W/24V10W/24V10W/24V10W/24V
Max.Lifting Force:80KG100KG120KG150KG180KG
Max.Lifting Height:3.60m3.60m3.60m3.60m3.60m
Motor Rail:3.0 - 4.5m3.0 - 4.5m3.0 - 4.5m3.0 - 4.5m3.0 - 4.5m
Rail Type:Chain/BeltChain/BeltChain/BeltChain/BeltChain/Belt
Limit Setting:ElectronicElectronicElectronicElectronicElectronic
Transformer Tech:Overload ProtectionOverload ProtectionOverload ProtectionOverload ProtectionOverload Protection
Soft Open&Close:YesYesYesYesYes
Frequency:433.92MHz/Rolling433.92MHz/Rolling433.92MHz/Rolling433.92MHz/Rolling433.92MHz/Rolling
Working Temp:20 - +70ºC20 - +70ºC20 - +70ºC20 - +70ºC20 - +70ºC
Protection Class:IP20IP20IP20IP20IP20
Standard Kit:1 Motor Head. 3.3m Motor Rail(Chain), 2pcs transmitter, Other Mounting Accessories

Aluminum Die Casting for Garage Door Cast-Aluminum Door with 100% Safety


>> Hardware Kit(self-produced)

Aluminum Die Casting for Garage Door Cast-Aluminum Door with 100% Safety


Hardware Choice:
- Standard Single Track (SST): 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm;
- Standard Double Track (SDT): 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm;
- L Profile support with Single Track (LST): 1 pair vertical track, 1 pair horizontal track with L profile support, needs min headroom 350mm;
- L Profile support with Double Track (LDT): 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, with L profile support,
needs min headroom 200mm
- L Profile support with Double Track & ABS curve (SLDT) : 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, L profile
with ABS curve, needs min headroom 200mm>> Packing & Delivery

1.Small quantity: Carton + Winding film + Wooden box 2.The full container quantity (20'GP/40'GP/40'HQ): Carton + Winding film W2500*H2150mm, 80 sets/20'GP; W4930*H2150mm, 40 sets /20'GP.

>> Production Process>> Sample Plate
>> About Master Well

Relying on our excellent business performance and R&D, we have exported to more than 120 countries and regions. We are now growingup to about 100 people work team,including International Sales Department, Domestic Sales Department, Purchase Department, FinancialDepartment,Human Resource Department and Research and Development.We are always ready to provide the professinal service for you.
>>Related Equipment

Aluminum Die Casting for Garage Door Cast-Aluminum Door with 100% Safety


>>Certification
>>FAQ

Q1: What is your MOQ?
A: No min order for glass garage door. We also suggest wooden cases package for protection during shipment.Q2: What is the Max available size of the panels?
A: The max length of panels can be 6M. The max width of panels is 610mm, adjustable.Q3: Can you do the full set products according to my project drawing?
A: Yes, our engineers will check your engineering drawings to ensure the accuracy of each different accessory and quantity. Q4: Can I get a sample of glass garage door for quality check?
A: Sample is available. Q5: How can I get a price of needed glass garage door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements. Q6: What kind of payment terms would you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us. Q7: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate. Q8: How to install your product, is it difficult?
A: Easy to install, just screw, no welding.If you need, installation video can be supplied. And you can contact our salesman if you haveany question. Of course we can offer on-site installation guide services if you need.Q9: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce Garage door, Industrial door, High speed door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers.We produce parts by ourselves in order to control quality and cost.Q10: Could you send me the price list?
A: Yes, the product is not standard, the size is customized according to your requirements, I can provide a regular size quotation.
